Description

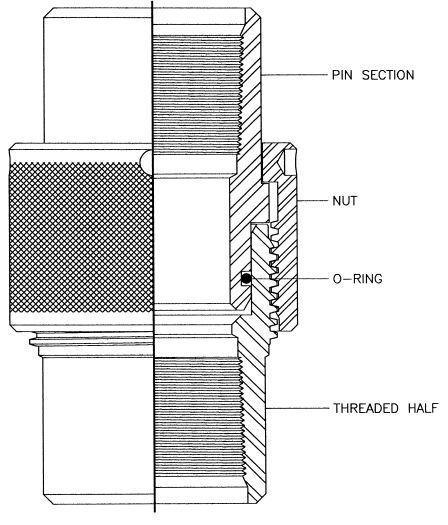

Quick Unions are screwed onto Pup-Joints to form a Lubricator. They are used to attach sections of lubricator together to accommodate the required tool string length. The Quick Union is designed to hold pressure using an o-ring type seal.








quickunion



IDENTIFICATION CHART
id1

id2



IDENTIFICATION CHART

A
B
C
D
E
46BOW001
43/4"-4
#340 O-ring
3.740-
3.750+
2" - 3"
46BOW000
51/2"-4
#345 O-ring
4.375-
4.385+
2" - 3"
IDENTIFICATION CHART

A
B
C
D
E
46OT0300
5"-4
#338 O-ring
3.490-
3.500+
2" - 2 15/16"

        ASSEMBLY



ASSEMBLY
4 3/4”-4
4 3/4”-4 (L80)
4 3/4”-4
4 3/4”-4 (L80)
2 3/8” EUE
2 3/8” EUE
2 7/8” EUE
2 7/8” EUE
Part Number
46B0W238
46B0W238-L80
46B0W278
46B0W278-L80
ASSEMBLY
4 3/4”-4
4 3/4”-4 (L80)
5 1/2”- 4
5”- 4
3 1/2” 10RD NU
3 1/2” 10RD NU
Part Number
46B0W350
46B0W238-L80
46B0W000
460T0300

      COMPONENTS



COMPONENTS
4 3/4”-4
4 3/4”-4 (L80)
4 3/4”-4
4 3/4”-4 (L80)
2 3/8” EUE
2 3/8” EUE

2 7/8” EUE

2 7/8” EUE
Threaded Half
46BN0238
46BN0238-L80
46BN0278
46BN0278-L80
Pin Section
46BN2238
46BN2238-L80
46BN2278
46BN2278-L80
Nut
46BN3150
46BN3150
46BN3150
46BN3150
O-ring
#340
#340 (Viton)
#340
#340 (Viton)
COMPONENTS
4 3/4”-4
4 3/4”-4 (L80)
5 1/2”- 4
5”- 4
3 1/2” 10RD NU
3 1/2” 10RD NU
Threaded Half
46BN0350
46BN0350-L80
46BN2350
460T1301
Pin Section
46BN4350
46BN4350-L80
46BN1350
460T2301
Nut
46BN3150
46BN3150
46BN3350
460T3301
O-ring
#340
#340 (Viton)
#345
#338

UNION SPANNER WRENCH



UNION SPANNER WRENCH
4 1/2” - 6 1/4”
Part Number
46B04560
