# K / AK KICKOVER TOOL

#### Tools International Corp

---

---

#### Description

#### Specifications

#### Assembly

#### Components

### Description



The Type “B” Mandrel is designed to be used in well completions that have not been equipped with landing nipples. It can be lowered to any desired depth and attached to the tubing wall as a means to set safety valves, regulators and flow beans. The Type “B” Mandrel can only hold pressure from below.

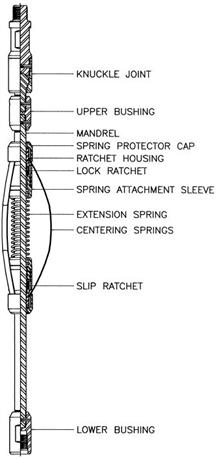

![k](https://www.tools-int.com/hubfs/k.jfif)



###          Specifications





| SPECIFICATIONS - K |  |
| --- | --- |
| Fishneck O.D. | 1.375" |
| Max. O.D. | 1.563" |
| Make Up Length | 28.718" |
| Roll Pins (4) |  3/16" x 1.375" |
| Top Pin Thread | 15/16"-10 |
| Bottom Box Thread | 15/16"-10 |
| Valve | 1" |
| Mandrel Type | KBM, KBMG, *MM, *MMG |

## * Requires 4.062" Spacer





| SPECIFICATIONS - AK |  |
| --- | --- |
| Fishneck O.D. | 1.187" |
| Max. O.D. | 1.313" |
| Make Up Length | 28.875" |
| Steel Pins (4) | 3/16" x 1.313" |
| Top Pin Thread | 15/16"-10 |
| Top Pin Thread | 15/16"-10 |
| Bottom Box Thread | 15/16"-10 |
| Valve | 1" |
| Mandrel Type | KBU, KBUW, KA |

###          Assembly



| ASSEMBLY - K |  |  |  |
| --- | --- | --- | --- |
|  | **2”, 2 1/2”** | **3”** | **4-ARM** |
| Part Number | 60K00200 | 60K00300 | 60K00400 |

| ASSEMBLY - AK |  |
| --- | --- |
|  | **1 1/2"** |
| Part Number | 60AK0150 |

###          Components



| COMPONENTS - K |  |  |  |
| --- | --- | --- | --- |
|  | **2”, 2 1/2”** | **3”** | **4-ARM** |
| Knuckle Joint | 60K00002 | 60K00002 | 60K00002 |
| Fishneck | 60B00061 | 60B00061 | 60B00061 |
| Socket | 60A00065 | 60A00065 | 60A00065 |
| Ball | 60A00083 | 60A00083 | 60A00083 |
| Upper Bushing | 60A00687 | 60A00687 | 60A00687 |
| Mandrel | 60B00062 | 60B00062 | 60B00062 |
| Spring Protector Cap | (2) 60B01125 | (2) 60B01125 | (2) 60B01125 |
| Ratchet Housing | (2) 60B01123 | (2) 60B01123 | (2) 60B00064 |
| Lock Ratchet | 60K00001 | 60K00001 | 60K00001 |
| Spring Attachment Sleeve | (2) 60A00082 | (2) 60A00082 | (2) 60A00082 |
| Extension Spring | 90A00914 | 90A00914 | 90A00914 |
| Centering Spring | (3) 90A00564 | (3) 90A00564 | (4) 90A00564 |
| Slip Ratchet | 60K00000 | 60K00000 | 60K00000 |
| Lower Bushing | 60A00694 | 60A00694 | 60A00694 |

| COMPONENTS - AK |  |
| --- | --- |
|  | **1 1/2"** |
| Knuckle Joint | 60AK0001 |
| Fishneck | 60B00967 |
| Socket | 60A00961 |
| Ball | 60A00083 |
| Upper Bushing | 60A00635 |
| Mandrel | 60B00956 |
| Spring Protector Cap | (2) 60A00959 |
| Ratchet Housing | (2) 60B00957 |
| Lock Ratchet | 60AK0002 |
| Spring Attachment Sleeve | (2) 60A00960 |
| Extension Spring | 90A00915 |
| Centering Spring | (3) 90A00564 |
| Slip Ratchet | 60AK0000 |
| Lower Bushing | 60A00636 |

---
