Description

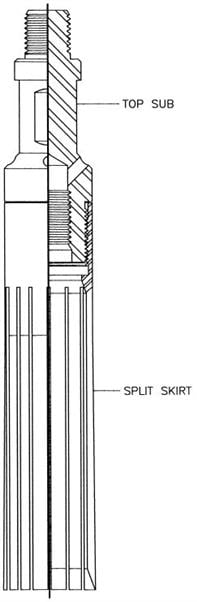

The Wirefinder with Top Sub is used to bend or ball the uppermost part of the wire so that retrieving applications may be used.

wirefinder

SPECIFICATIONS EXTENDED TOP SUB
	2"
Fishneck O.D.	1.375"
Max. O.D.	1.813"
Pin connection	15/16"-10
Made Up Length	15.000"

SPECIFICATIONS
	2"	2 1/2"	3"
Fishneck O.D.	1.375"	1.375"	1.375"
Max. O.D.	1.813	2.400"	2.740"
Pin connection	15/16"-10	15/16"-10	15/16"-10
Made Up Length	10.938"	11.313"	10.938"

ASSEMBLY
	2"	2 1/2"	3"
Part Number	52B00557	52B00558	52B00559

COMPONENTS
	2"	2 1/2"	3"
Top Sub	52B00841	52B00841	52B00841
Split Skirt	52B00555	52B00556	52B00850
Extended Top Sub (optional)	52CS000
