TIC PLUNK BOMB OVERSHOT

Tools International Corp



Description

Specifications

Assembly

Components

Description



The TIC “Plunk” Bomb Overshot is a non-releasable overshot designed to latch and retrieve the “Plunk” Soft Release Sub or the “Plunk” Rope Socket.







overshot



         Specifications





SPECIFICATIONS
Fishneck
1 3/16"
Overall Length
8.687"
Top Pin Thread

3/4"-16

O.D.
1.375"
Latches Soft Sub / Rope Socket
1.906"

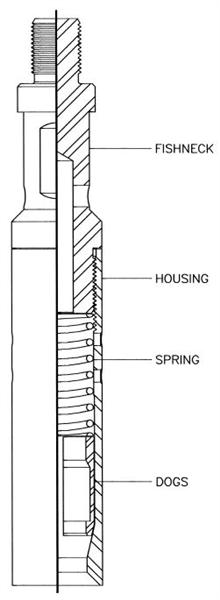

         Assembly



ASSEMBLY
Part Number
48PL1400

COMPONENTS



COMPONENTS
Fishneck
48PL1401
48PL1301
48PL1301
Spring
90NPL013
48PL1302
48PL1302
Housing
48PL1402
48PL1303
48PL1303
Dog
(2) 48PL1403
48PL1305
48PL1306
