A PACKOFF (UPPER ASSEMBLY)
Tools International Corp
Description
Specifications
Assembly
Components
Description
The Type “A” Packoff is used to straddle and seal off holes in the tubing. The upper and lower Type “A” Packoffs are usually joined by spacer pipe. Upper and lower tubing stops are used to keep the packoff assemblies in the locked position. In special applications, an upper or lower can be used as a tubing plug in situations where during well completion, landing nipples were not installed.
.jpg?width=220&name=%E2%80%9CA%E2%80%9D%20PACKOFF%20(UPPER%20ASSEMBLY).jpg)
Specifications
| SPECIFICATIONS | |||
|---|---|---|---|
2" |
2 1/2" |
3" |
|
Max. Running O.D. |
1.844" |
2.281" |
2.700" |
I.D. |
1.046" |
1.125" |
1.531" |
Fishneck |
1.500" Inside |
1.750" Outside |
2.31" Outside |
Shear Pin |
3/16" Brass |
1/8" Brass |
5/16" Brass |
Lower Connection |
1" LP |
1 1/4"-10rd EUE |
1 1/2" NPT |
Pulling Tool |
40PRS200 |
40JDC250 |
40JDC300 |
Running Tool |
40PRS200 |
40JDC250 |
40JDC300 |
Assembly
| ASSEMBLY | |||
|---|---|---|---|
2" |
2 1/2" |
3" |
|
Part Number |
13CC1200 |
13CC1250 |
13CC1300 |

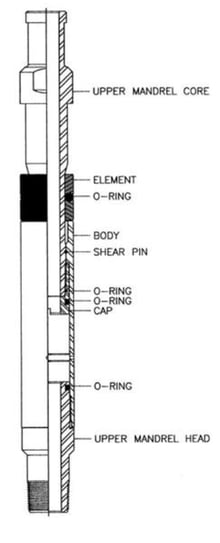

Components
| COMPONENTS | |||
|---|---|---|---|
2" |
2 1/2" |
3" |
|
Upper Mandrel Core |
13B00071 |
13B00258 |
13A00311 |
Element |
(2) 97A00813 |
(2) 97A01226 |
(2) 97A00597 |
O-Ring |
97A00814 |
97A01227 |
97A00598 |
Cap |
13B00074 |
13B00260 |
13A00312 |
Body |
13B00072 |
13B00259 |
13B00068 |
Upper Mandrel Head |
13B01038 |
13B00263 |
13A00313 |
Split Ring |
- |
- |
(2) 13B00066 |
O-Ring |
#123 |
#128 |
#133 |
O-Ring |
(2) #218 |
(2) #325 |
(2) #329 |
