#  "TICX" Lock Check Set Tool

#### Tools International

---

---

#### Description

#### Specifications

#### Assembly

#### Components

### Description

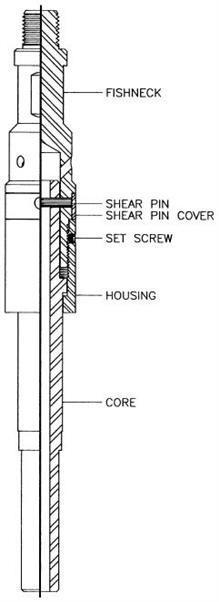

These tools are used to insure that the “TICX” and “TICR” Locking Mandrels have properly been set in the appropriate landing nipple. A sheared pin in the tool, once it has been run, indicates that the lock has been properly set. It is lowered downhole to the locking mandrel using standard wireline tools.

![ticx_checksettool](https://www.tools-int.com/hubfs/ticx_checksettool.jfif)



---

###          Specifications



|  |  |  |  |  |  |
| --- | --- | --- | --- | --- | --- |
|  | **1 1/2"** | **1.710"** | **2"** | **2.125"** | **2.188"** |
| Fishneck O.D. | 1.188" | 1.375" | 1.375" | 1.375" |  |
| Thread Connection | 15/16"-10 | 15/16"-10 | 15/16"-10 | 15/16"-10 |  |
| Brass Shear Pin | 3/16" x 1 1/4" | 1/4" x 1 5/8" | 1/4" x 1 5/8" | 1/4" x 1 7/8" |  |
| Set Screw | 1/4"-20 x 1/4" | 1/4"-20 x 1/4" | 1/4"-20 x 1/4" | 5/16"-18 x 1/4" |  |

|  | 2 1/2" | 2.562" | 3" | 4" |
| --- | --- | --- | --- | --- |
| Fishneck O.D. | 1.375" | 1.750" | 1.750" |  |
| Thread Connection | 15/16"-10 | 15/16"-10 | 1 1/16"-10 |  |
| Brass Shear Pin | 1/4" x 1 7/8" | 1/4" x 2 1/2" | 3/16" x 3 3/8" |  |
| Set Screw | 5/16"-18 x 1/4" | 5/16"-18 x 1/4" | 5/16"-18 x 1/4" |  |
| Pulling Tool     | 40GS1300 | 40GS1300 | 40GS1350 | 40GS1400 |

---

###          Assembly



|  |  |  |  |  |  |
| --- | --- | --- | --- | --- | --- |
|  | **1 1/2"** | **1.710"** | **2"** | **2.125"** | **2.188"** |
| Part Number | 10CHK150 | 10CHK200 | 10CHK213 | 10CHK218 |  |

|  |  |  |  |  |
| --- | --- | --- | --- | --- |
|  | **2 1/2"** | **2.562"** | **3"** | **4"** |
| Part Number  | 10CHK250 | 10CHK300 | 10CHK400 |  |

---

###          Components



|  |  |  |  |  | Title |
| --- | --- | --- | --- | --- | --- |
|  | **1 1/2"** | **1.710"** | **2"** | **2.125"** | **2.188"** |
| Fishneck | 10B01201 | 10B01253 | 10B01253 | 10B01257 | Add your content here. |
| Shear Pin Cover | 10B01262 | 10B01250 | 10B01250 | 10B01254 | Add your content here. |
| Housing | 10B01263 | 10B01252 | 10B01252 | 10B01256 | Add your content here. |
| Core | 10B01258 | 10B01251 | 10B01264 | 10B01260 | Add your content here. |

|  |  |  |  |  |
| --- | --- | --- | --- | --- |
|  | **2 1/2"** | **2.562"** | **3"** | **4"** |
| Fishneck | 10B01257 | 10B01272 | 10B01274 |  |
| Shear Pin Cover | 10B01254 | 10B01270 | 10B01275 | 10B01254 |
| Housing | 10B01256 | 10B01271 | 10B01276 | 10B01256 |
| Core | 10B01255 | 10B01273 | 10B01277 | 10B01260 |

---
