RARE EARTH MAGNET

Tools International Corp



Description

Specifications

Assembly

Components

Description



The Rare Earth Skirted Magnet is used to remove metal particles and debris from the tubing, which may impede normal wireline operations and prevent tools from functioning properly.

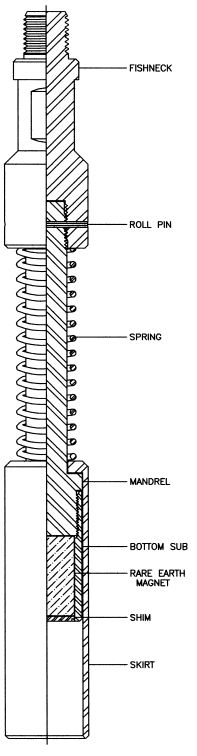

rareearthskirtedmagnet



SPECIFICATIONS



SPECIFICATIONS
1.750"
2.250"
2.750"
Fishneck O.D.
1.375"
1.375"
1.750"
Max. O.D.
1.750"
2.250"
2.750"
Pin Connection
15/16"-10
15/16"-10
1 1/16"-10
Made Up Length
15.500"
15.500"
15.500"

ASSEMBLY



ASSEMBLY
1.750"
2.250"
2.750"
part Number
37RES200
37RES250
37RES275

COMPONENTS



COMPONENTS
1.750"
2.250"
2.750"
Fishneck
37A00023
37A00034
37A00050
Spring
90B01692
90B01692
90B01692
Mandrel
37A00024
37A00035
37A00051
Magnet
37REM010
37REM020
37REM030
Shim
37A00012
37A00022
37A00032
Bottom Sub
37A00011
37A00021
37A00031
Skirt
37A00025
37A00036
37A00052
